presenter notes https://datatracker.ietf.org/doc/html/rfc8493

presenter notes Definition comes from: https://primarysources.yale.edu/what-does-born-digital-mean

presenter notes Some examples of digital storage devices include floppy disks, compact discs or CDs, and hard drives. All are used to store, read and write digital data, to varying degrees. Digital storage devices are commonly associated with legacy born-digital collections, and look similar to the image on the slide. However, digital carriers are not exclusive to things that are “old”. Smartphones, at least at the moment, are a ubiquitous digital carrier that have and will likely continue to make their way into archival processing queues, and should be considered a digital storage device on its own.

presenter notes Image credit: "Assortment of obsolete and current media that the AHC’s Born Digital unit handles on a daily basis." Digital Preservation 101: Demystifying the Digital, American Heritage Center, 20 July 2020, https://ahcwyo.org/2020/07/20/digital-preservation-101-demystifying-the-digital/.

presenter notes This definition comes from University of Georgia Libraries Github documentation on born-digital accessioning. See: https://github.com/uga-libraries/born-digital-accessioning?tab=readme-ov-file

presenter notes Definition source: https://dictionary.archivists.org/entry/appraisal.html The basis of appraisal decisions may include a number of factors, including the records’ provenance and content, their authenticity and reliability, their order and completeness, their condition and costs to preserve them, and their intrinsic value. Appraisal often takes place within a larger institutional collecting policy and mission statement.

fit

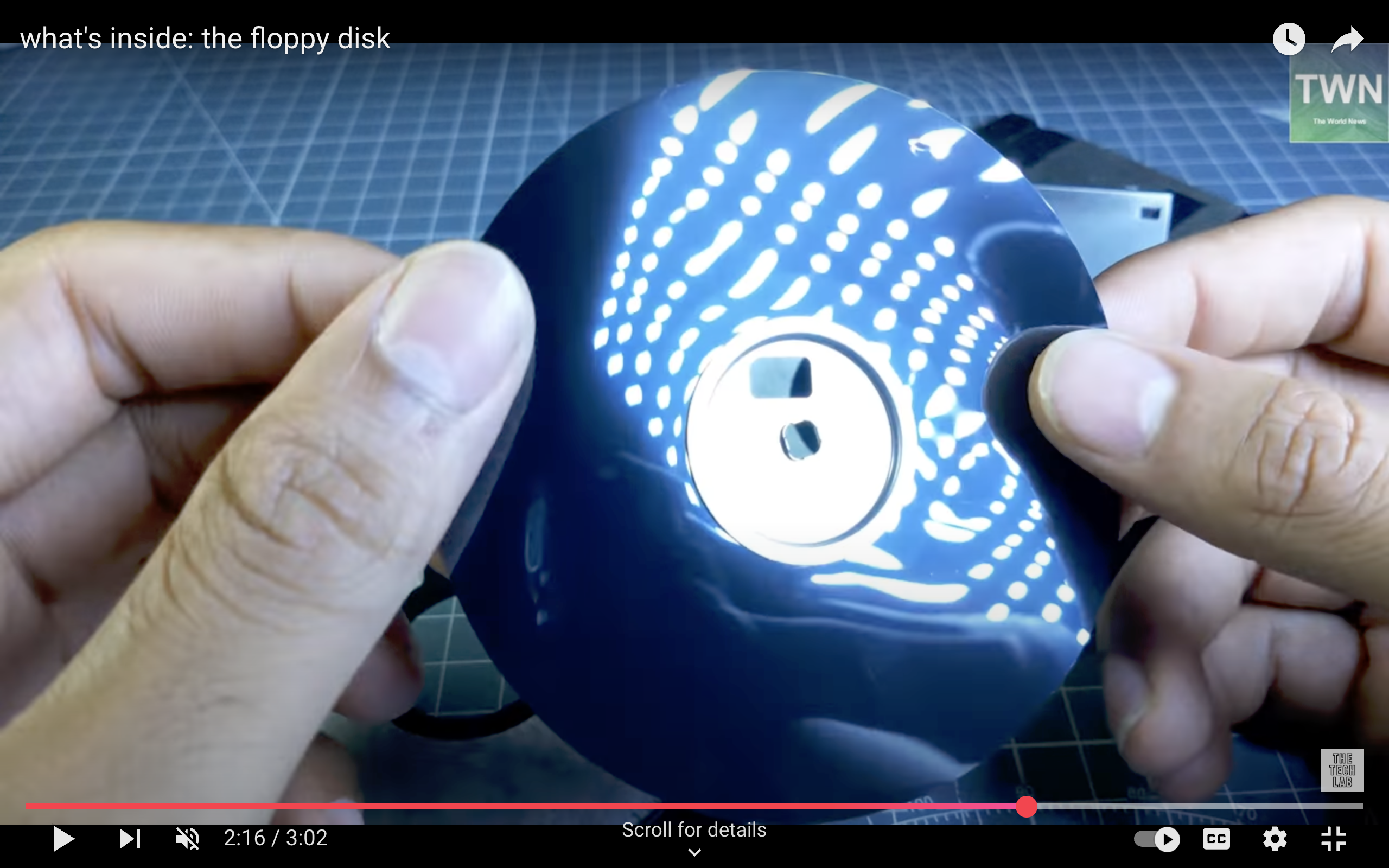

presenter notes Screen capture of a person handling the insides of a floppy disk, from this YouTube video: https://www.youtube.com/watch?v=1-oH2T3W-q4

presenter notes Diagram from Wikipedia article on disk sectors: https://en.wikipedia.org/wiki/Disk_sector This diagram illustrates how data is written to the surface of a magnetic storage disk, which can be thought of as a circular map with data stored in specific, measurable locations. Each disk is divided into sectors that correspond to precise points on the disk's surface and are defined by their size in bytes, making sectors the smallest unit of storage. When a file is saved to a hard drive, the file system assigns it to a series of contiguous sectors whenever possible. This grouping of sectors is known as a cluster, and would appear like tracks.

presenter notes Disk imaging describes the process of creating a bit-identical copy of the source media. The imaging process copies data sector-by-sector from the raw device.

presenter notes As a result of imaging you end up copying not just a bunch of files, but entire file systems. A file system is essentially the interpretive layer between the computer/user and the file locations written to disk. Meaning, you as the user, as well as the computer system itself uses file systems to make sense of where files live, how to interact with them, how and where they are organized.

presenter notes Once you have an image, then what? The answer usually is using some sort of emulator. An emulator is software that imitates a specific computer's hardware so that programs written for that original machine can run unchanged on a different, modern system. An emulator can, in this way, take an image, and treat it as if it were a real physical disk. Instead of inserting a floppy into a drive, you point the emulator at the disk image file, instead. The emulator then reads that file sector-by-sector, just like real hardware would read on a disk. So the image provides the data, the emulator provides the virtual machine and together they recreate the original computing environment.

presenter notes Disk imaging liberates bitstreams from digital storage media, which can otherwise be subject to all the inherent risks associated with born-digital items. Disk images can be migrated into modern computing environments where they can be analyzed. The analysis may be for appraisal purposes, or throughout the course of archival processing in arranging and describing the contents.

presenter notes https://archive.org/details/a2gs_Volcanoes_Deluxe_1988_Earthwave_Services What does a disk image look like, and how can we look into it or interact with it once it is made? One way to easily look at and experience a disk image is by perusing the Internet Archive. There are a number of vintage video game collections. Take a moment to look up a game on the Internet Archive by searching for “apple ii games internet archive” in a web browser. Click on any game that comes up that is interesting to you. When you click on a video game, notice how the main screen will briefly show you a blue screen that says something along the lines of “Apple II” and some copyright information. When you see this, what you are seeing is the Internet Archive booting up a disk image of the Apple II operating system. This is necessary because these video games have a dependency on the Apple II operating system to be played. So right off the bat, you are interacting with a disk image, first of an operating system, and then immediately afterwards, the disk image of the videogame. You can see the image file listed by clicking “Show all files” on the right/bottom-hand side of the game screen. In the list, locate the *.2mg file. This is the disk image. Really, it looks like any other file, with a name, a period, and a file extension, which you can even download to your computer, if you wish. This enables you and I to play these games without subjecting the original disks to wear and tear. And because it is an exact copy of the original, we can experience it in a similar way to an original game player.

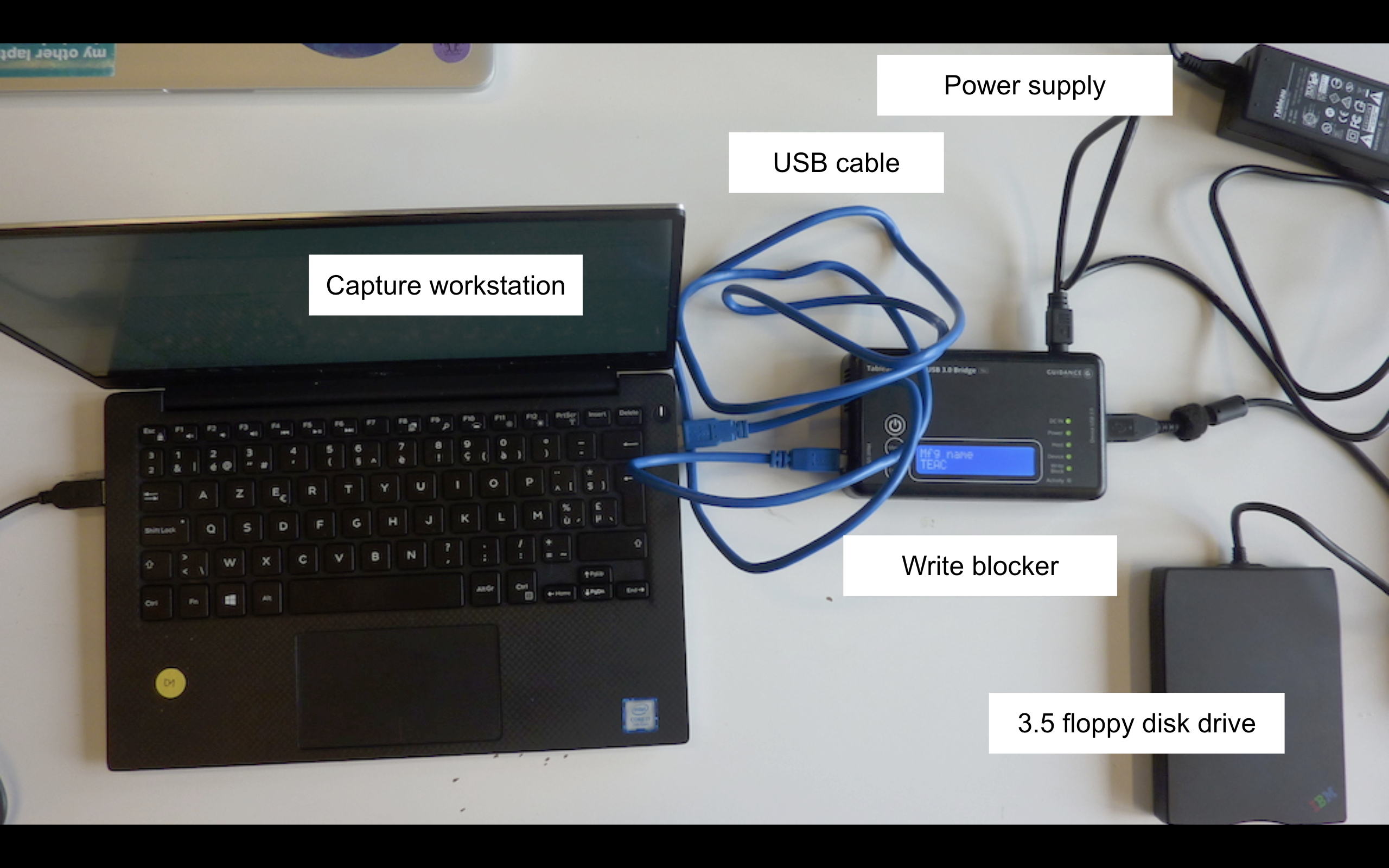

presenter notes What does a disk imaging workstation look like? - Dedicated capture workstation: A laptop or desktop computer used for disk imaging. - Write blocker: A hardware device that sits between the capture workstation and the disk reader, preventing accidental modification of the source media. - Disk reader: A device that reads the physical media (e.g., a floppy disk drive for floppy disks). - Various cables connect the workstation, write blocker, and disk reader to each other, ensuring proper data transfer, and to power.

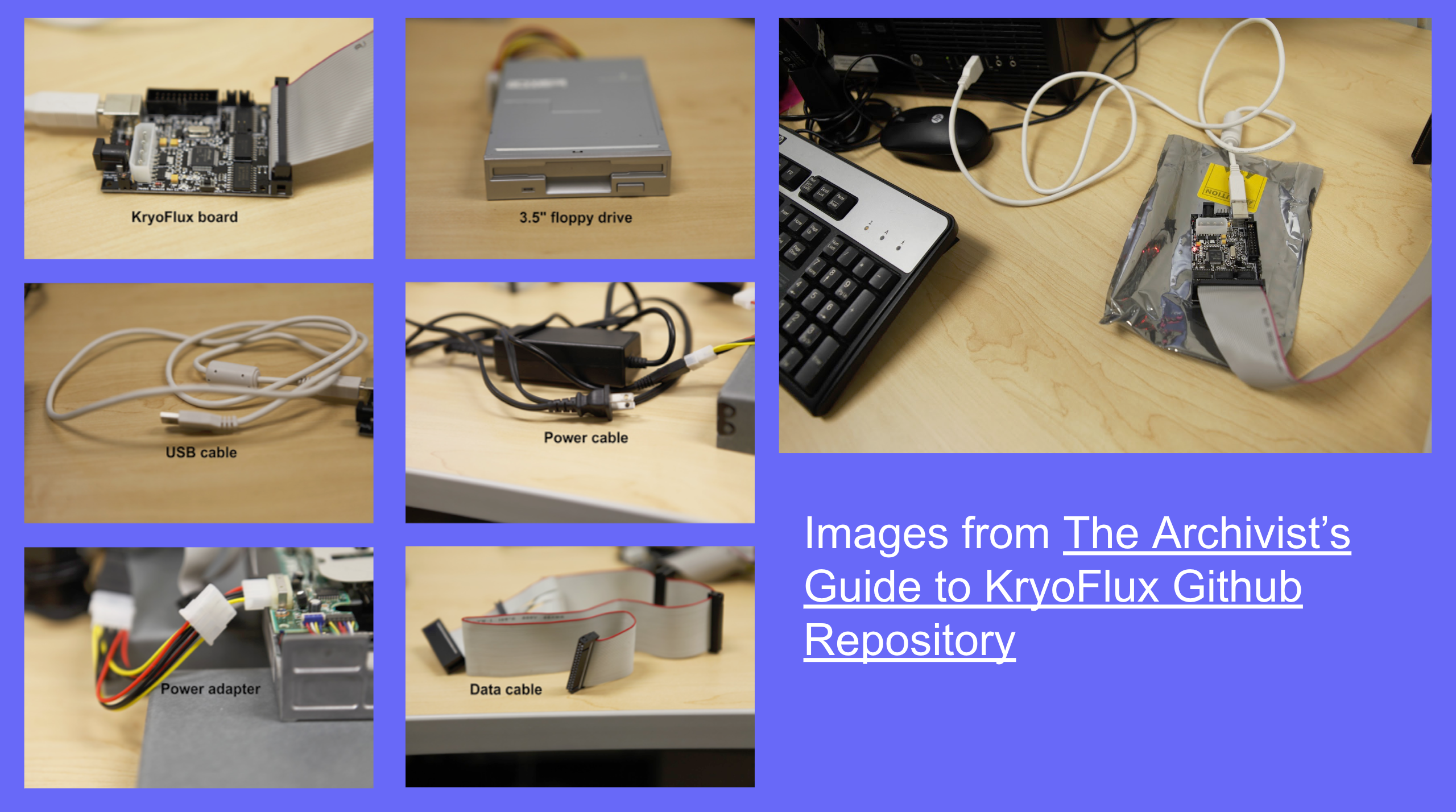

presenter notes Sometimes, imaging fails, and we have to use other devices and tools at our disposal to get the bitstream. On the slide is a KryoFlux controller card. These images were taken from a Github repo called “The Archivist’s Guide to KryoFlux”, which was a collaborative document written by several digital archivists from different repositories. You have several components. Starting from the top left going from left to right, is the KryoFlux board, which looks like an exposed computer chip. The KryoFlux board is connected to the floppy drive using a data cable. The data cable size will depend on the type of drive you are transferring from. The image on the slide shows a 3.5” floppy drive, but a KryoFlux board can be connected a multitude of floppy drives. Once your floppy drive is connected to the KryoFlux board, you will next connect the board to your computer using a USB cable. Once your drive and board are connected to your computer, you launch the tool via the command line. Once this is done, you connect your floppy drive to an power source using a power adapter. Again, depending on the drive you are using for imaging, you will use a different power adapter. This ultimately enabled Emory to capture all of Walkers disks. Why did the KryoFlux work so much better? KryoFlux is known to be able to capture disk images of a variety of formats. Along with the KryoFlux card, you will need to install the Disk Tool Controller (DTC) software. DTC is used to control the board and interact with floppy disk drives and provides a user-friendly interface for controlling the board and performing various disk-related tasks. This software is available for various operating systems, including Windows, Linux, and macOS.

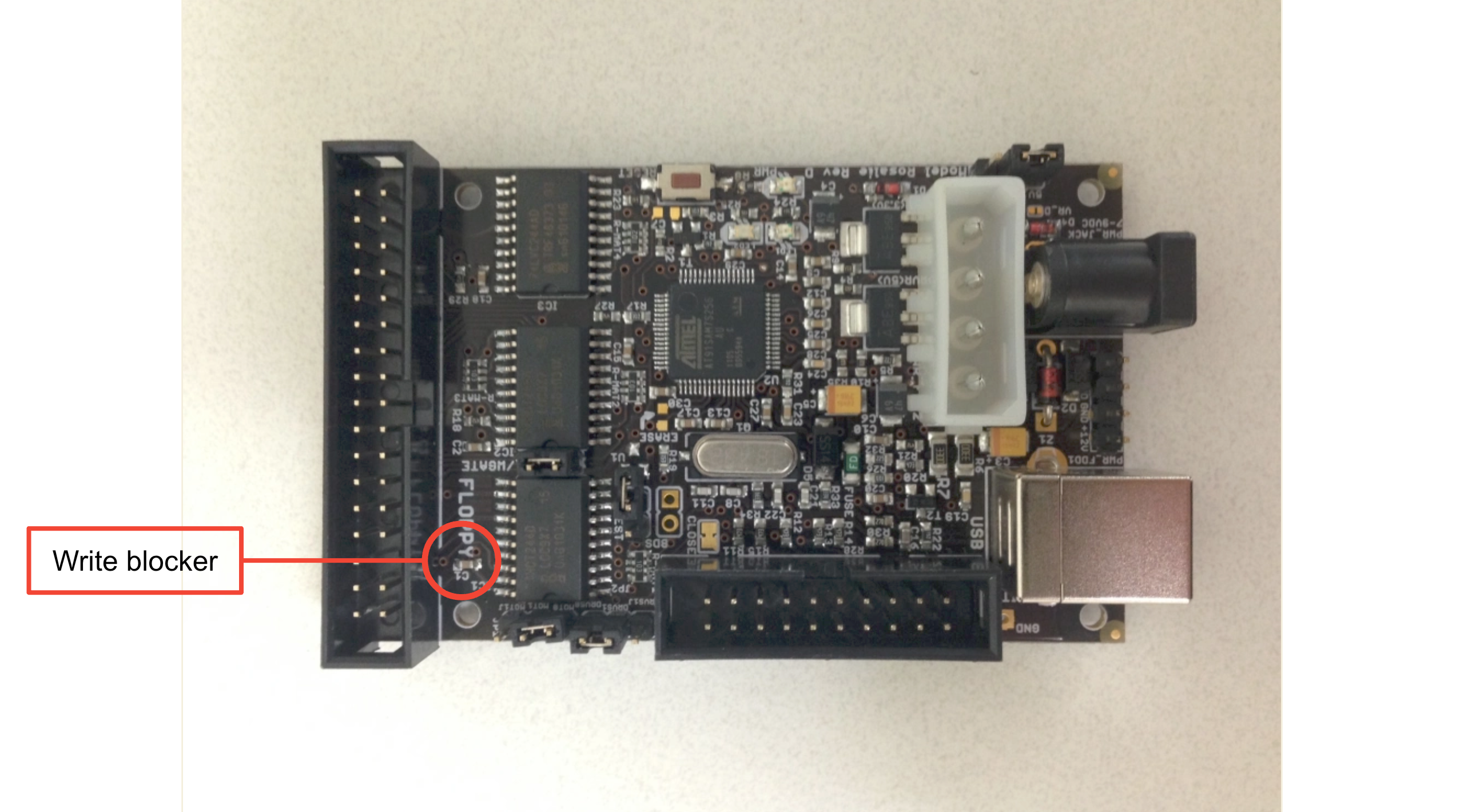

presenter notes Here is a close-up photo of the KryoFlux board, which comes with a built-in write-blocker, circled in red. To enable write-blocking functionality, you would actually physically remove the jumper for the write gate.

presenter notes A write blocker is piece of hardware or even physical component on a storage device that prevents a system from overwriting data held in a target born-digital item. It is a physical gate that puts you into read-only mode.

presenter notes What happens when you don’t toggle a write blocker? A good example of this are the created, modified and accessed metadata properties of a file. Each of these three data points holds important details about provenance. File systems, by design, automatically update this data without asking you whether or not you would like to commit the change. As a result, if you were to image a disk without the write blocker turned on, you would see the Created, Modified and Accessed data change to today’s date, rather than the date the original file was accessed by its creator.

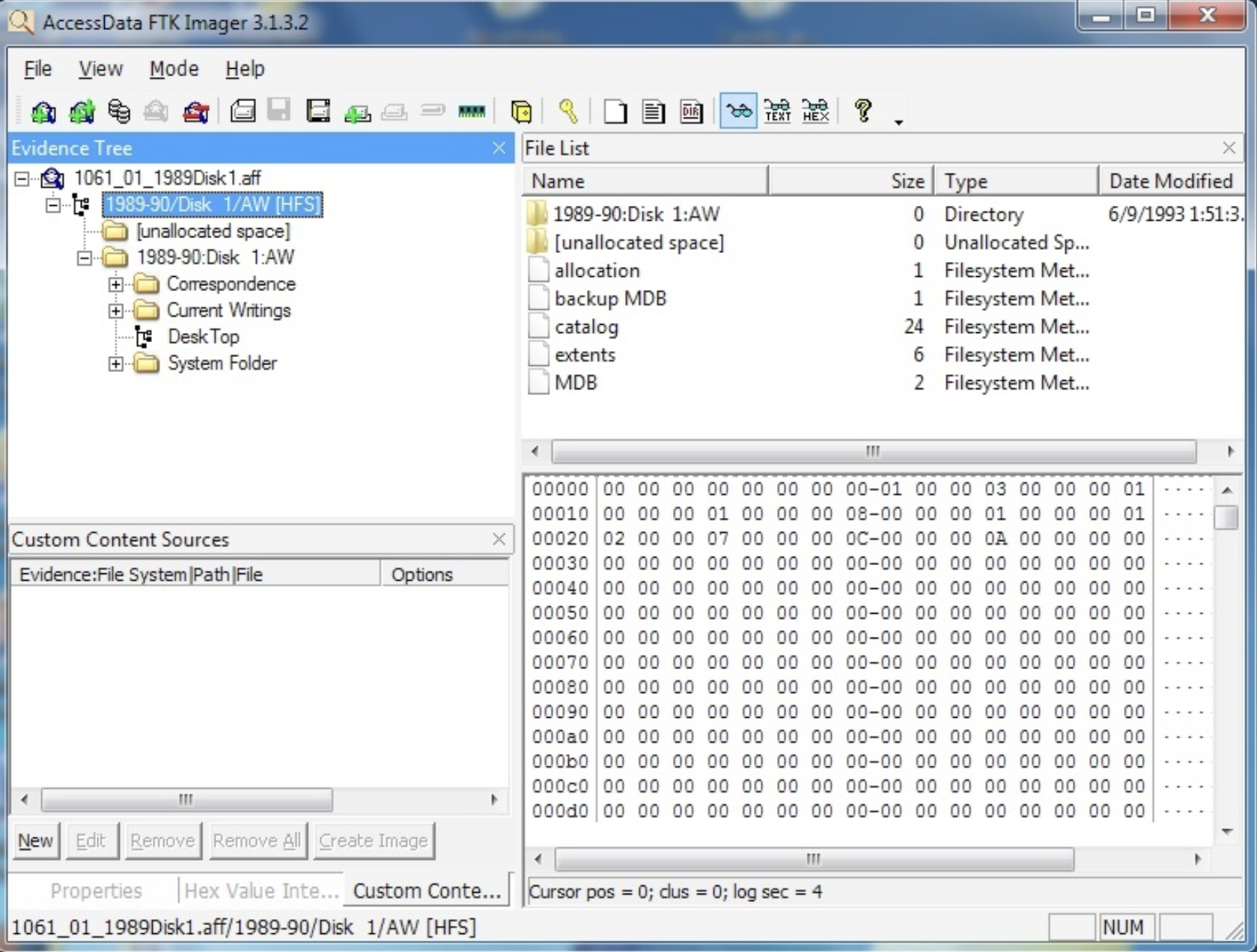

presenter notes This is a screen capture of the FTK Imager graphical user interface (GUI), which is one of many tools offered in the Forensic Toolkit environment. On the left-hand side of the screen is a folder directory or "tree" showing one of the disk images (ending in the file format extension AFF, which stands for "advanced file format", a forensic disk image file format.) On the lower right-hand side of the screen is a hex editor, which lists the hexadecimal representations of the binary code stored on the image, as well as their sector location (a sector refers to a specific area of a disk) listed in the left-hand column. Along with creating a disk image, FTK Imager also “...calculates MD5 and SHA-1 checksums in order to verify that the capture was successful … a text file including some technical metadata and fixity information, and a CSV file listing the file names and paths of data contained on the imaged media.”

presenter notes Digital forensics techniques are often deployed because storage media can contain swaths of data that would make analyzing it nearly impossible. Forensic technologies enable the archivist to take precise measures to properly appraise, arrange and describe the contents.

presenter notes When we are working with media containing files, it is very likely that we will encounter files at scale. For example, we may receive a pile of floppy disks, each containing 20 files. So, maybe it might be easy enough to just manually identify each file manually. But what if an archivist is handling an entire harddrive, containing hundreds or even thousands of files. Performing a technical appraisal at this scale is simply impossible to do manually.

presenter notes And another tool! Siegfried also does bulk identifying, but is known to be nimble and quick, and can compare against PRONOM database.

presenter notes **Normalization** refers to the process of converting a digital object into a persistent file format. Normalization practices can vary from institution to institution. That said, institutions like the Library of Congress have put forth normalization recommendations.

presenter notes <a href="https://www.nationalarchives.gov.uk/pronom/" target="_blank">PRONOM</a> is an on-line registry of data file formats, signatures, and their supporting software products. Originally developed to support the accession and long-term preservation of electronic records held by the National Archives, PRONOM is now being made available as a resource for anyone requiring access to this type of information, and is integrated in a variety of file format identification tools and systems.

presenter notes I am distilling the information outlined in Yale's Libguide for Born Digital Archival Description Guidelines (https://guides.library.yale.edu/c.php?g=934566&p=6736587)

presenter notes Here I am taking queues from the Canadian Centre for Architecture's "Arrangement of born-digital archives" section: https://github.com/CCA-Public/digital-archives-manual/blob/master/guides/arrangement.md#arrprinciple
